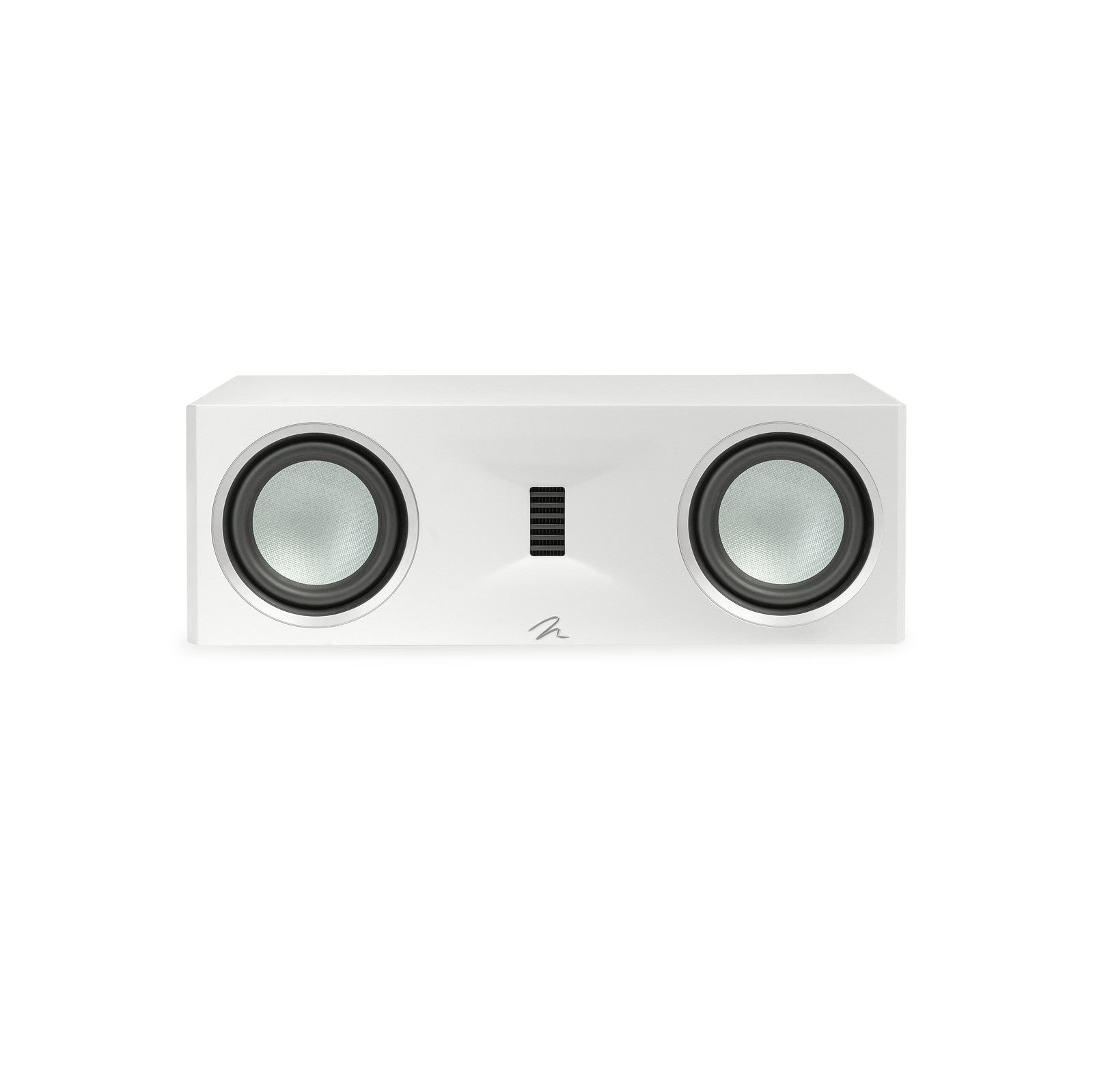

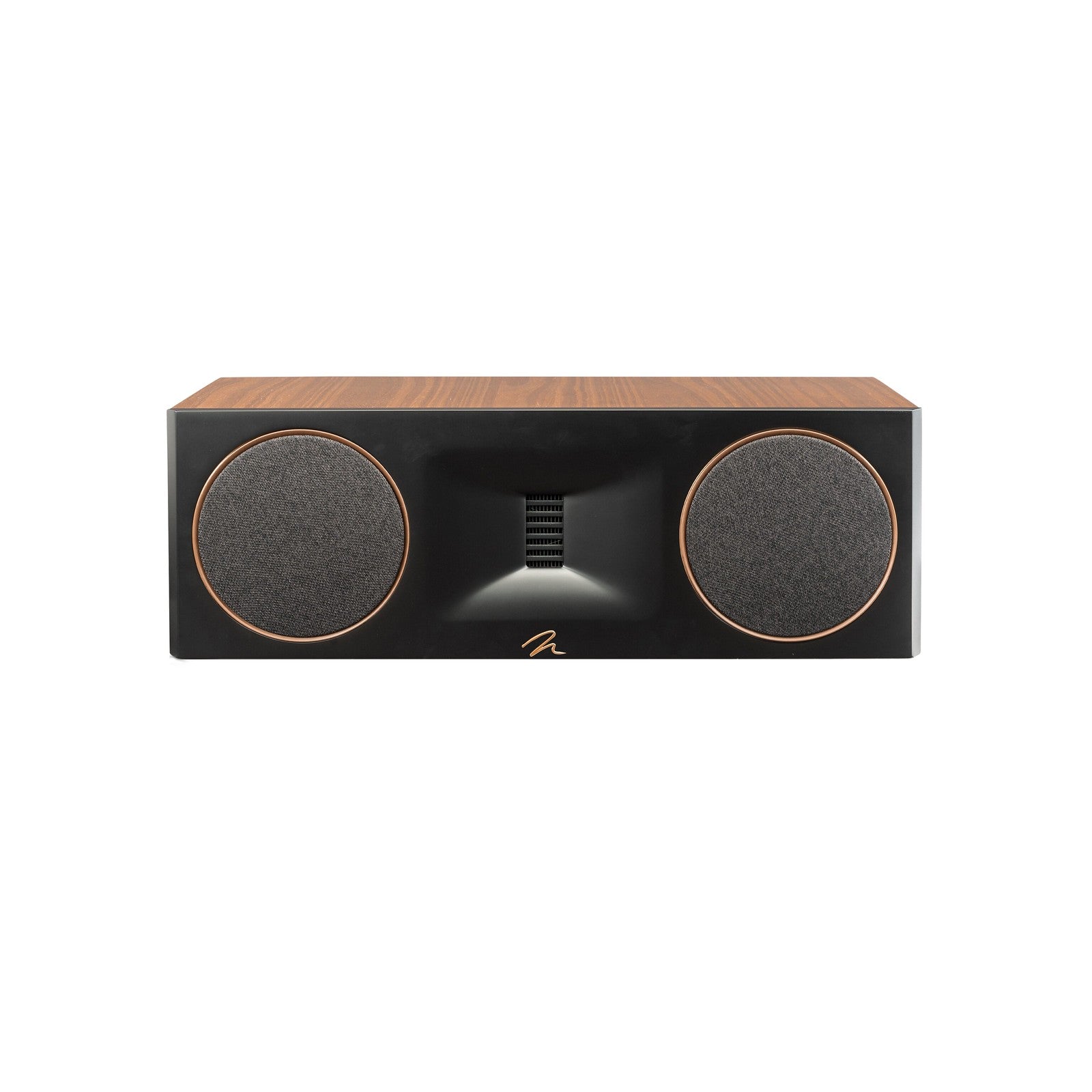

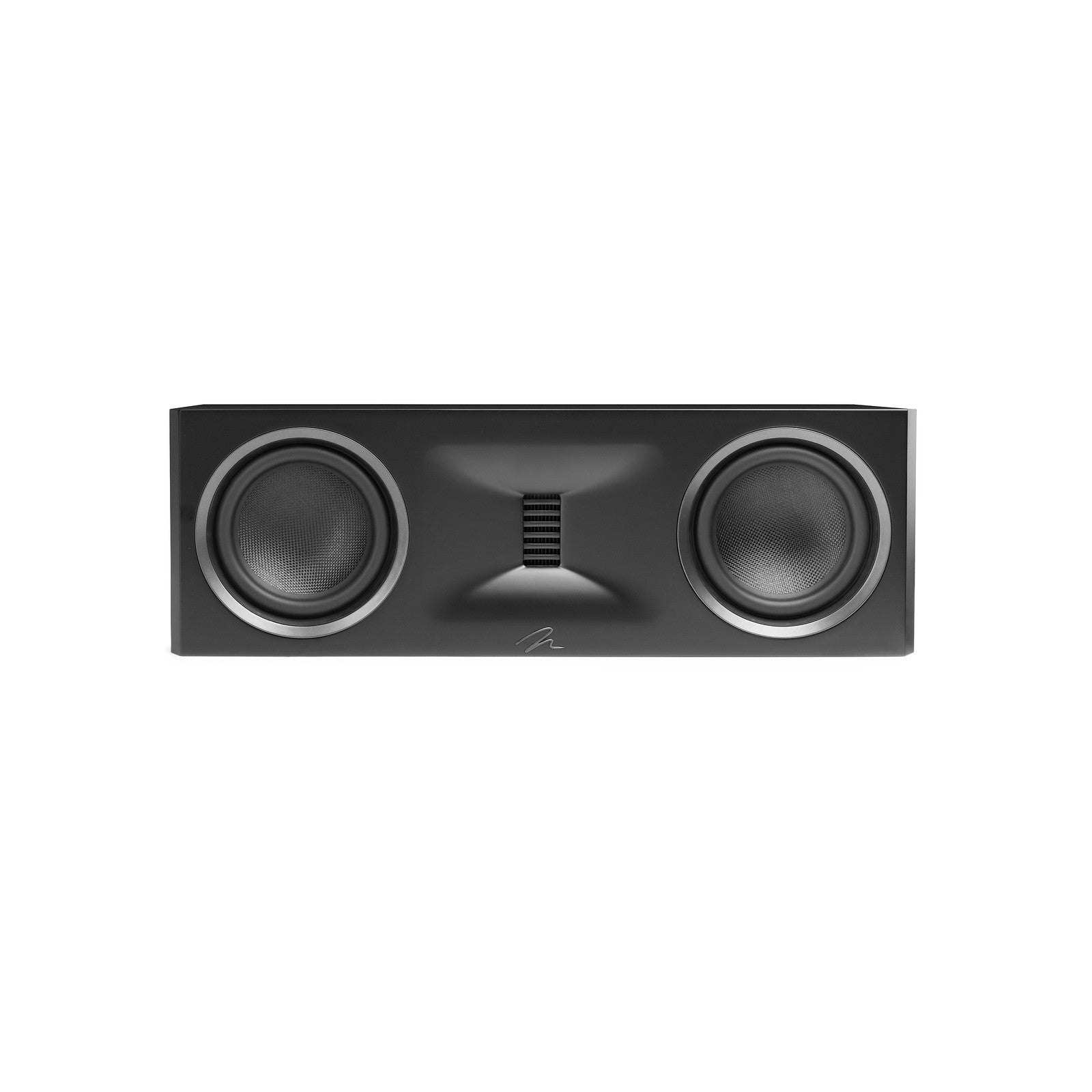

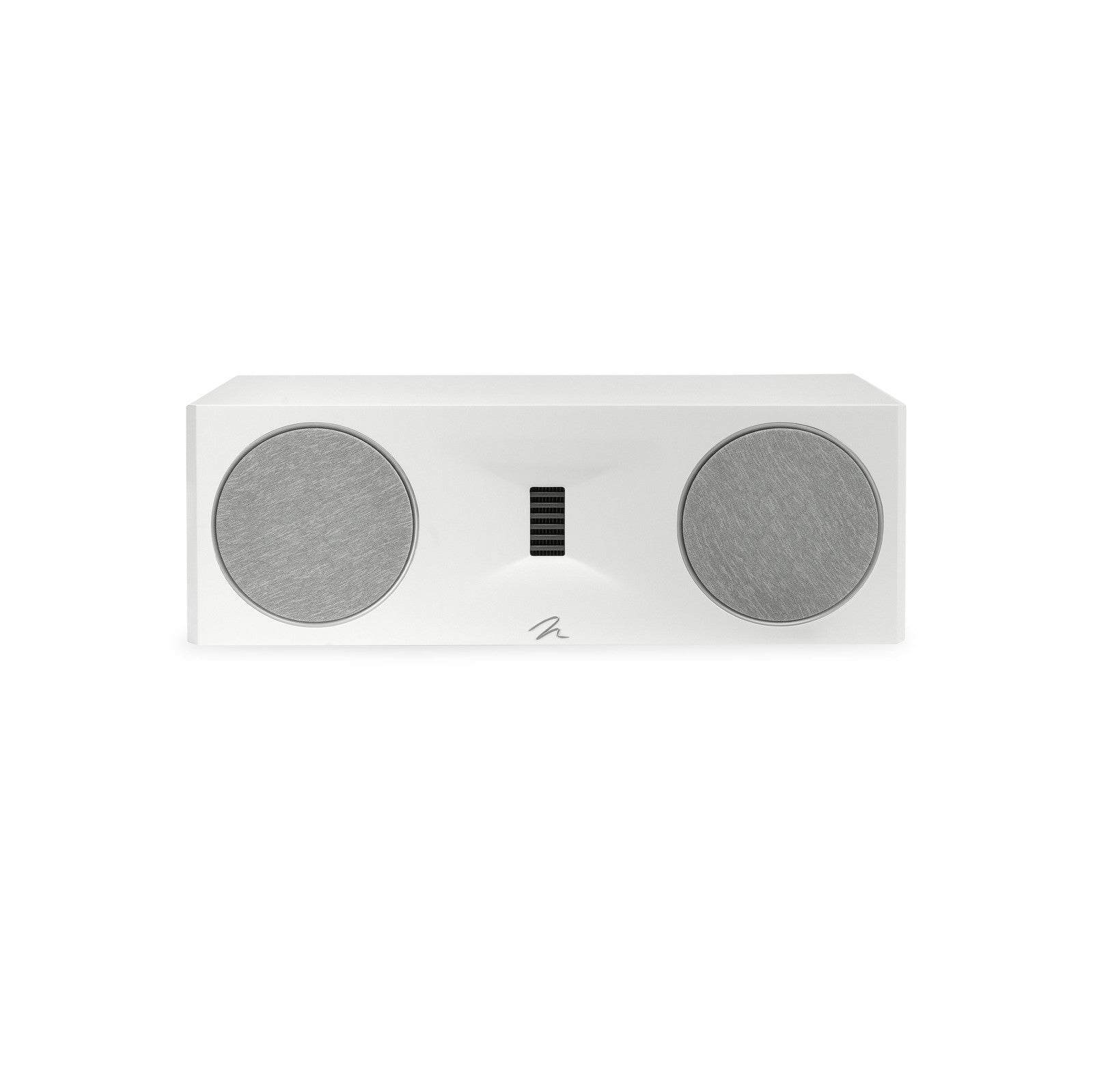

Motion XT C100
The optimal center channel for any Motion® XT or Motion®-based surround system. Featuring our latest Gen2 Folded Motion® XT Tweeter with advanced Folded Motion® Waveguide technology for ultimate dialogue clarity and consistency in every seat. The anti-lobing crossover design further increases accuracy, while the flippable cabinet provides a slight angle if desired, perfect for a low-mounted shelf or TV stand.
Legendary MartinLogan Sound
MartinLogan speakers are known for their exceptional articulation, detail and realism, regardless of the listening environment. By using advanced thin-film technologies and Controlled Dispersion, MartinLogan delivers a unique and unparalleled listening experience that is not commonly found in other speakers.
Gen2 Obsidian Folded Motion Tweeter S
Our signature thin-film tweeter technology just got better. With an upgraded motor structure, the latest Gen2 FMT provides higher output and lower distortion than ever before. The FMT XT offers the most effortless and detailed sound in the Motion range with a 40% increase in surface area over our signature FMT. Outside of our legendary Electrostatic speakers, these new tweeters provide our cleanest, most detailed and accurate high frequency presentation to date.
Folded Motion® Waveguide
Enhances the Controlled Dispersion of the tweeter, blanketing the listening area with incredible detail and precision. Avoids performance robbing room reflections and provides a more consistent sound across a wider seating area.
Anti-Lobing Center Channel Design
Like its more premium siblings, the C100 and C10, the C1 also utilizes a 2.5-Way crossover design to eliminate lobing and preserve the tonality of the source material. This results in a significant reduction of negative effects on sound reproduction, leading to a more precise and accurate listening experience.
Flippable Center Channel Cabinet
The unique flippable design of the Motion® cabinet allows for better sound clarity and immersion when placed on a lower shelf or piece of furniture by directing the sound upwards towards the listener's ears.
SPECIFICATIONS
Dimensions (H x W x D, with feet) |
8” x 24” x 14-1/2” |
Frequency Response |
42 Hz - 25 kHz |
Tweeter Dispersion (horizontal x vertical) |
90° x 45° |
Recommended Amplifier Power |
20 - 300 watts |
Sensitivity |
93 dB |
Impedance |
5 ohms |
High Frequency Driver |
1.25” x 2.4” (3.2 x 6.1cm) Gen2 Obsidian Folded Motion XT Tweeter with 12.4 in2 (79.8 cm2) diaphragm |
Crossover Frequency |
1,300 Hz, 2,500 Hz (2.5-way) |
Mid-Frequency Drivers |
2x 6.5” (16.5cm) Nomex Reinforced Kevlar® cones with cast aluminum baskets. Non-resonant asymmetrical chamber format. Unibody cone construction. Anti-lobing 2.5-way crossover design. |
Cabinet |
Rear Ported |

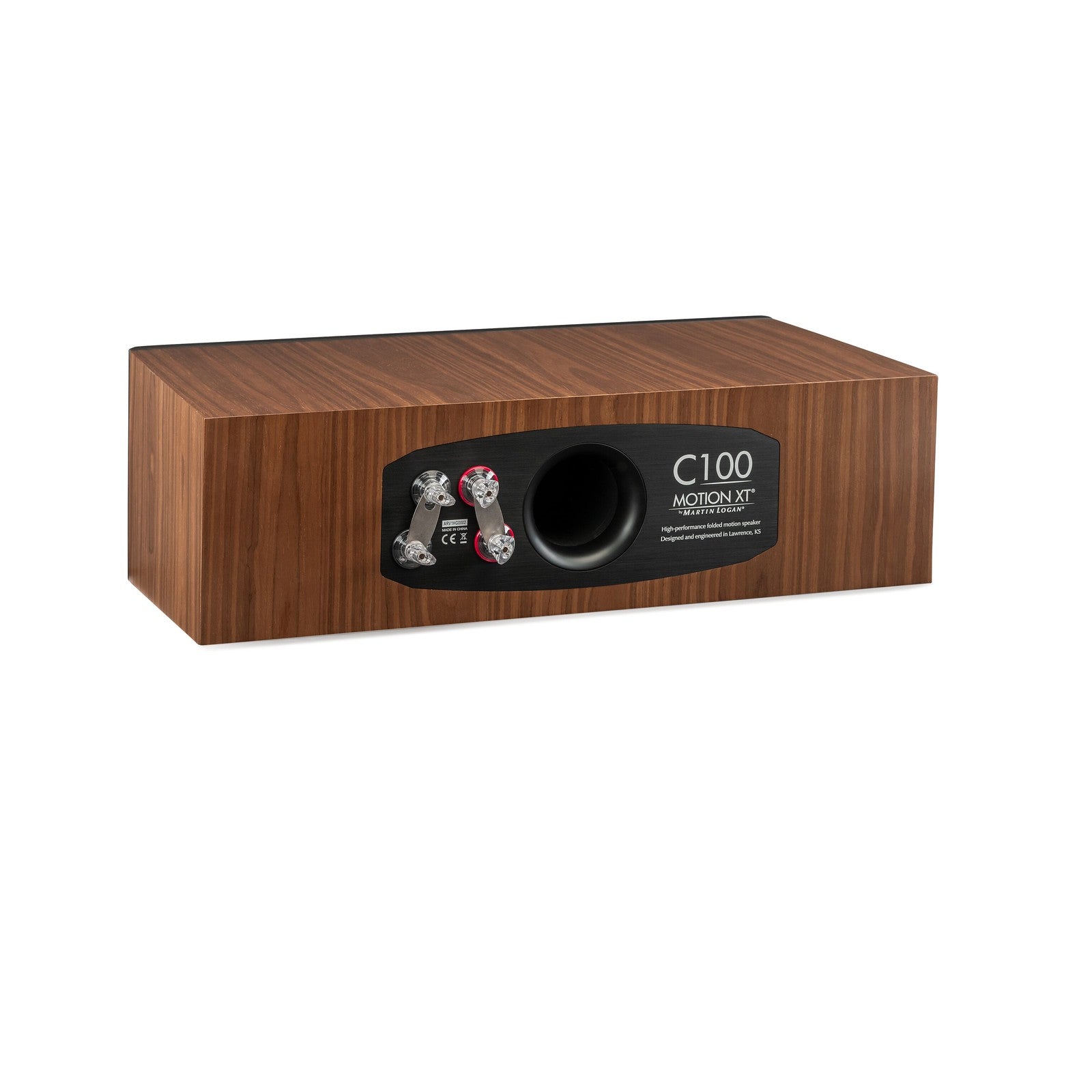

Binding Post Inputs |
Custom bi-amp/bi-wire capable 5-way binding posts |
Weight |
34lbs / 15.4kg |
Finish |
Gloss Black, Walnut, and Satin White |
