PRO 80
The Pro-80 is priced for entry-level but its material and design sophistication is of a higher order, meeting Monitor Audio’s world-famous quality standards.
Its optimised driver systems feature the brand’s trusted MMP II cone bass units co-axially aligned with a 1" (25 mm) pivoting fabric dome tweeter, which can be directed for maximum clarity.

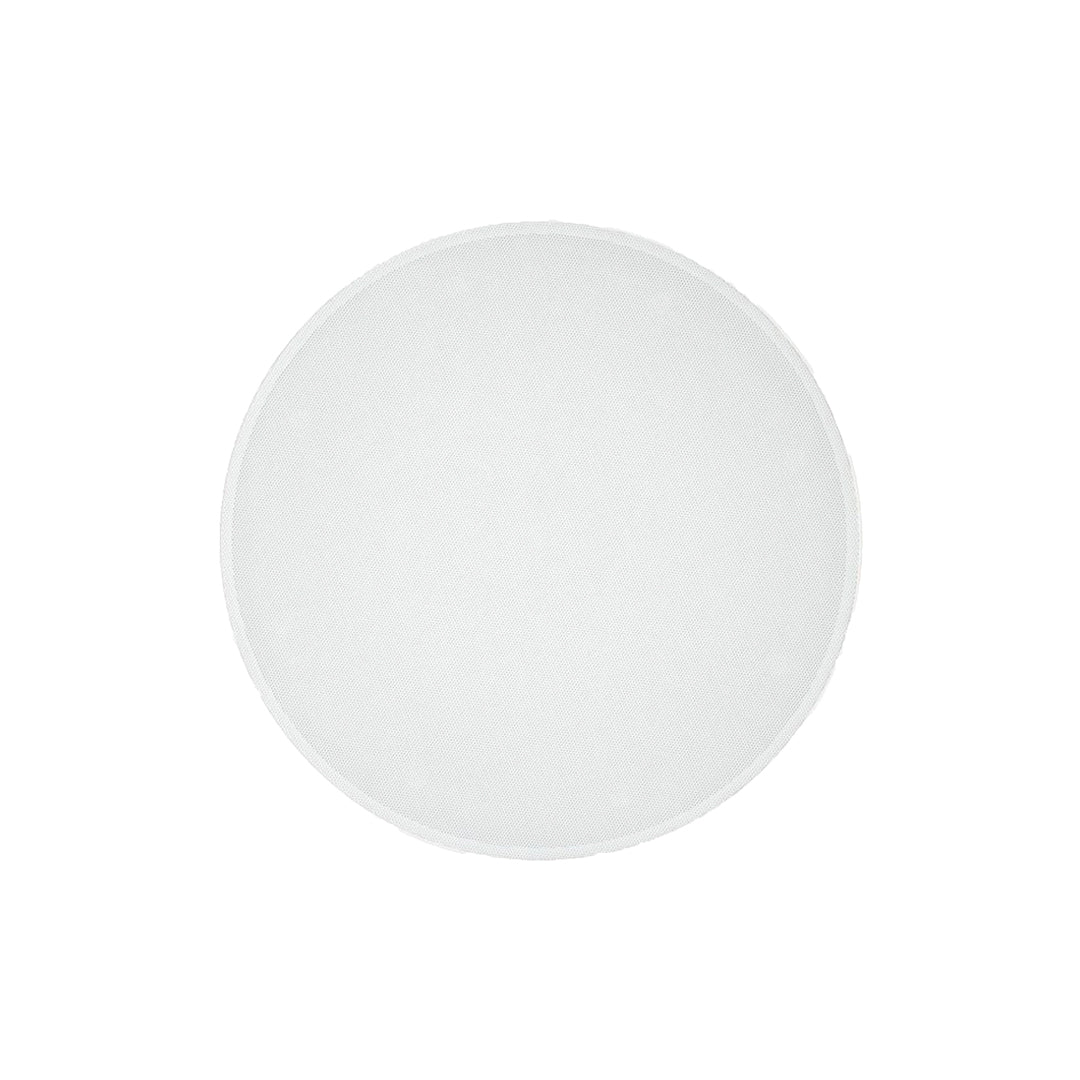

The new Pro designs connect through gold-plated push terminals and install easily via robust and reliable dogleg fixings, which are covered by a magnetic trimless grille for heightened convenience and beautiful flush-fitted concealment.
SPECIFICATIONS
|
Frequency Response |
60 Hz – 20 kHz |
|
Nominal Impedance |
8 ohms |
|
Sensitivity (1W@1M) |
87 dB |
|
Maximum SPL |
103.8 dBA |
|
Power Handling (RMS) |
40 W |
|
Recommended Amplifier Requirements |
10 — 40 W |
|
Drive Unit Complement |
|
|
Connection |
Gold plated push style terminal |
|
Overall Diameter (Including Grille) |
273 mm (103/4") |
|
Overall Depth (Including Grille) |
103 mm (41/16") |
|
Cut-Out Hole Diameter |
248 mm (93/4") |
|
Mounting Depth |
98.1 mm (37/8") |
|
Fixing Type |
4 position dog leg fixings |
|
Construction Material |
ABS (UL94 rated, RoHS2 Compliant) Painted steel grille |
|
Weight |
1.50 kg (3 lb 5 oz) |
|
Pre-Construction Bracket |
CB8 Pre-Construction Bracket (Green) |
