CLG140

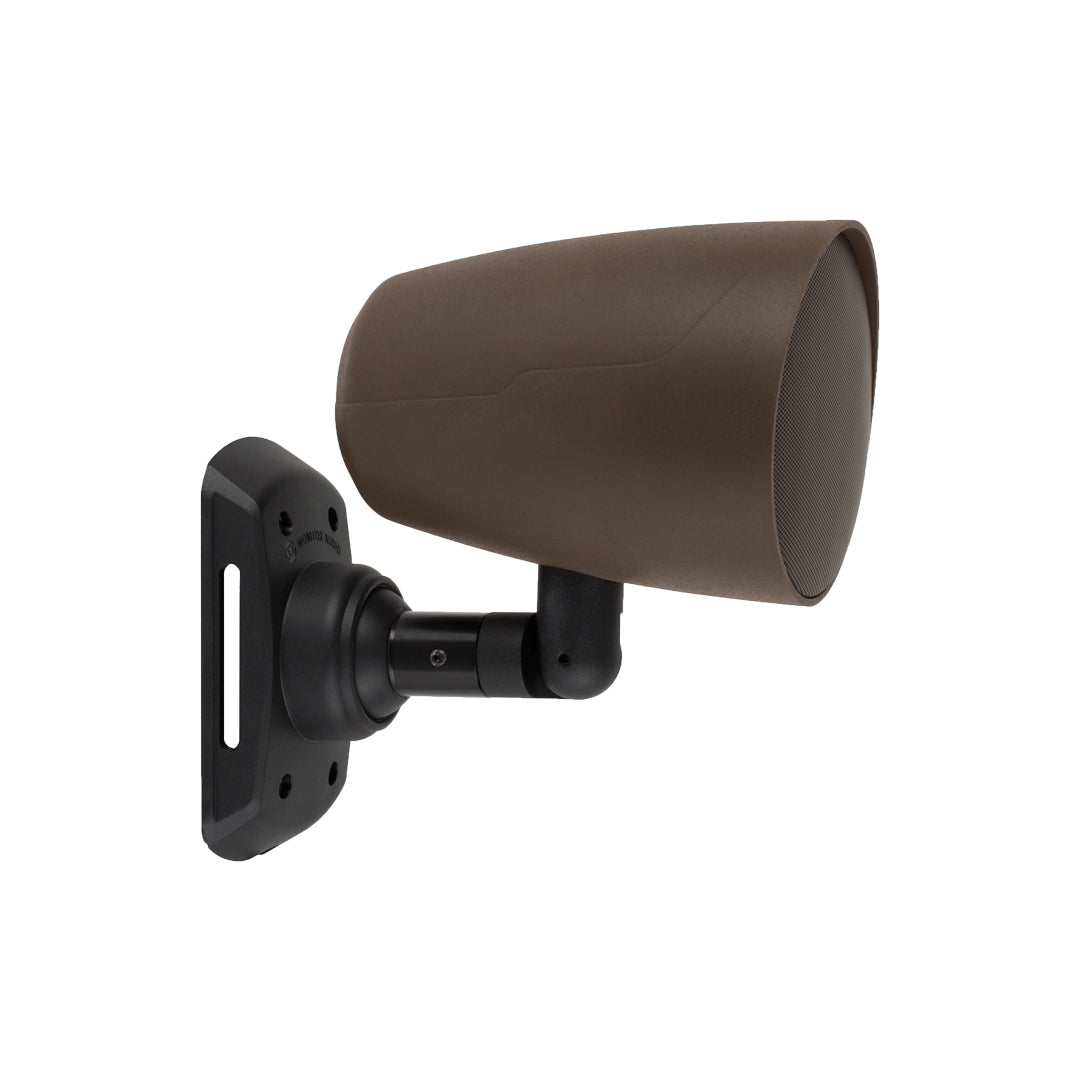

The CLG140 satellite speaker is a robust high sensitivity design built to deliver richly detailed hi-fi quality mid/high frequencies.
Engineered to withstand the most extreme temperatures and weather conditions, its rigid conical polymer enclosure houses the company’s signature 1” (25 mm) C-CAM Gold Dome tweeter co-axially aligned with a 4" MMP bass-mid driver. The horn-shaped housing provides excellent audio directivity in free air conditions when positioned close to the garden surface on a bracket/spike assembly, which neatly encapsulates and channels the connecting cable into the ground for a discreetly installed result. Alternatively it’s possible to mount the CLG140 on a tree, pole, wall or fence.
Supplied in a durable dark brown finish for excellent coordination with garden colours, the CLG140’s casing can be painted to blend with any environment.
Technology
- 4" MMP II bass-midrange driver
- Coaxially aligned 25 mm C-CAM Gold Dome tweeter
- Optimised for high sensitivity and wide dispersion
- Internal matching transformer for 70/100 V line level operation
- Designed to operate under extreme climatic conditions from -20 to 70 C
- Rigid, high impact polymer cabinet for long life and durability
- Bracket mounting made from die-cast aluminium alloy
- Garden spike (CLG-SPIKE R) and mount (CLG-MOUNT) available separately
- Certified to IP55 rating
- Encapsulated cable runs inside bracket and spike for discreet appearance
- Dark Brown finish blends with garden colours, but enclosure is paintable to blend with alternative settings
- Applications include garden and deck areas: system expands with garden size
- PTC protection against power overload
SPECIFICATIONS
Frequency Response (-6 dB) |
100 Hz — 30 KHz |
Sensitivity (1W@1M) |
88 dB |
Line Level Voltage |
70/100 |
Maximum SPL |
104 dBA |
Power Handling (RMS) |
40 W (crossover set to minimum 100 Hz@12 dB/Octave) |
Recommended Amplifier Requirements |
10 — 40 W per speaker |
Drive Unit Complement |
|
Crossover Recommendation |
100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum) |
External Dimensions (Excluding Spike and Mount (H x W x D)) |
130 x 175 mm (51/8 x 67/8") |
Total Bracket Pivot Angle |
32° in all directions |
Connection |
Encapsulated cable connection |
Environmental Protection Rating |
IP55 |
Colour / Finish |
Brown |
Dispersion |
60° |
Weight |
2.08 kg (4 lb 10 oz) |
